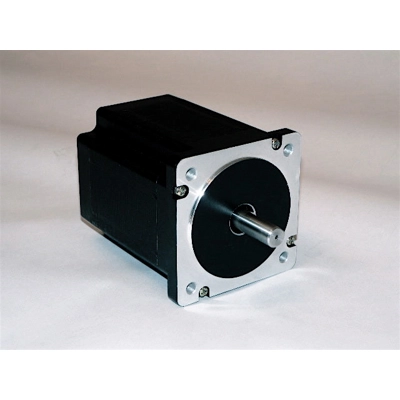

RS34-1840 oz/in stepper motor
$219.00 inc. tax
| PARAMETERS | SERIES | PARALLEL | UNIPOLAR |
| NO.OF PHASES | 2 | 2 | 2 |
| STEP ANGLE | 1.8+/-5% deg | 1.8+/-5% deg | 1.8+/-5% deg |
| VOLTAGE | 5.5 V | 2.6 V | 3.19 V |
| CURRENT | 4.0 A/phase | 8.0 A/phase | 6.5 A/phase |
| RESISTANCE | 1.3+/-10% ohm/phase | 0.33+/-10% ohm/phase | 0.65+/-10% ohm/phase |
| INDUCTANCE | 12+/-20% mH/phase | 3+/-20% mH/phase | 3+/-20% mH/phase |
| HOLDING TORQUE | 1840 oz/in (1300 N.cm) | 1840 oz/in (1300 N.cm) | 1416 oz/in (1000 N.cm) |
| INSULATION CLASS | B | B | B |
| NO. OF LEADS | 8 | 8 | 8 |
| BODY LENGTH | 114mm | 114mm | 114mm |
| WEIGHT | 8.8 LBS | 8.8 LBS | 8.8 LBS |
